GVG 90
Product Description

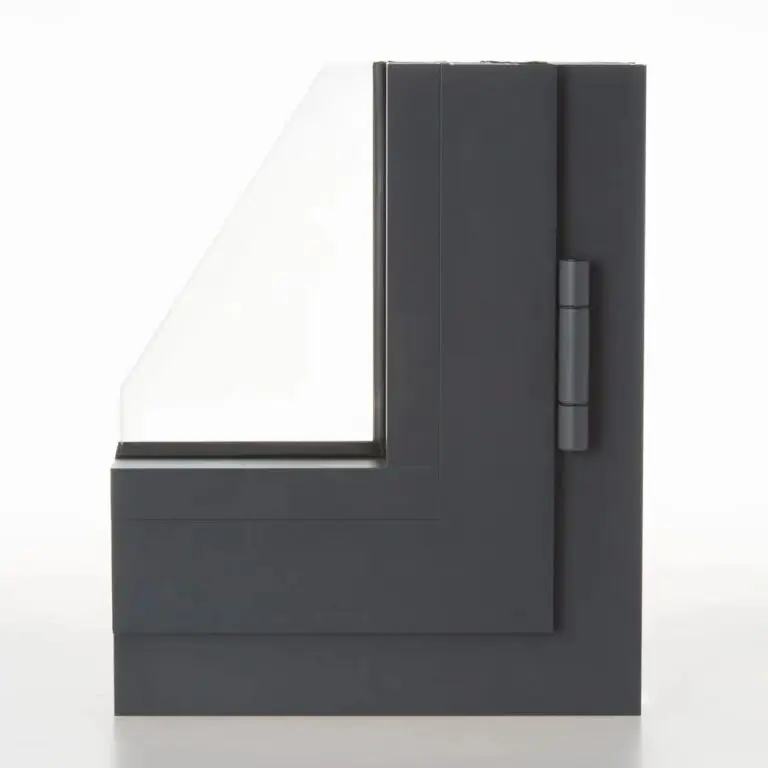

Our GVG 90 range is an advanced thermal efficient window and door system with super-insulated frames, RC 3 security, advanced sound proofing and designed integrating a four-gasket airtight seal. The system comes with multiple opening options, including tilt and turn opening in and side hung only opening out. the GVG 90 system is the perfect choice for high end designs, large scale commercial projects and public builds such as hospitals.
Available in a selection of colours and wood styles.
Product Parameters
Aluminum Profile Thickness：1.8mm
Frame Width：90mm
Sash & Window Width：99mm
Visible Frame Width：50mm
Thermal Break Width：54mm
Glass：24-39mm

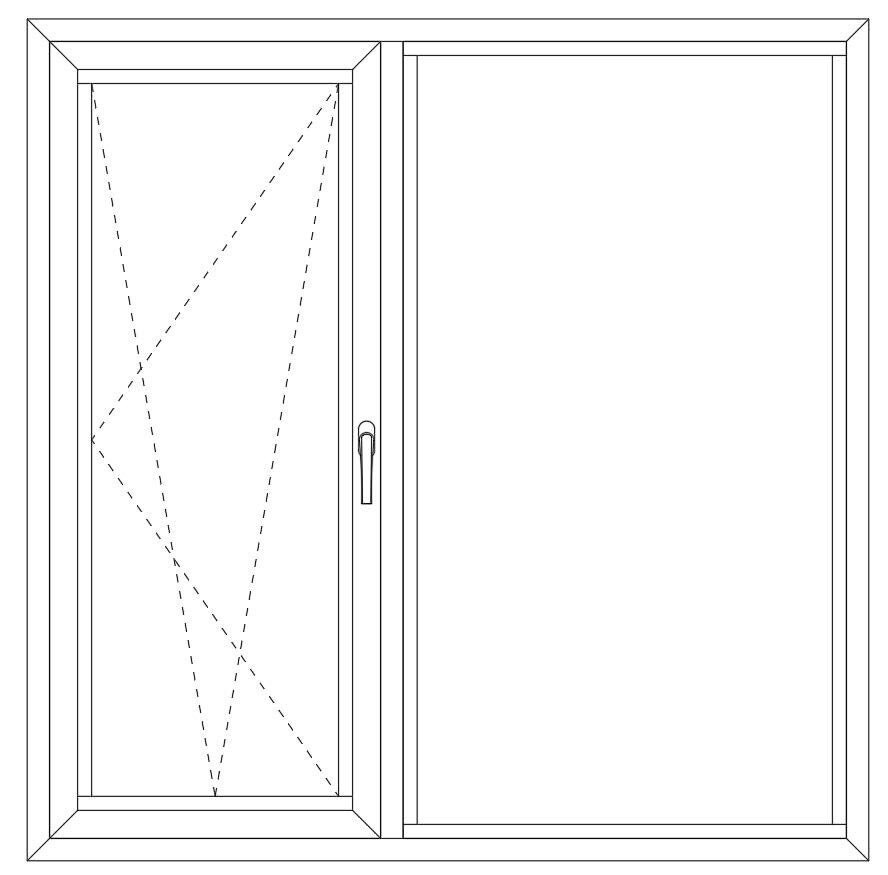

Opening Method：Casement, Awning, Tilt & Turn
Product Features

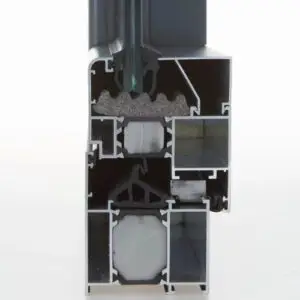

Isobaric sealing structure design
Euro-slot profile design
External profile water blocking and internal
staircase drainage system
Foam Insulation
- Uw ≥ 0.64 W/㎡K
- Uw ≤ 1.0 W/㎡K
Perfomance Parameters
Thermal Insulation：Level 10
Air Tightness：q1 ≤ 0.5 (Level8)
Sound Insulation：Rw = 39 (Level 4)
Water Tightness：△P ≤ 700 (Level 6)
Wind Resistance：P3 ≤ 5.0 (Level 9)
Security Rating: RC3

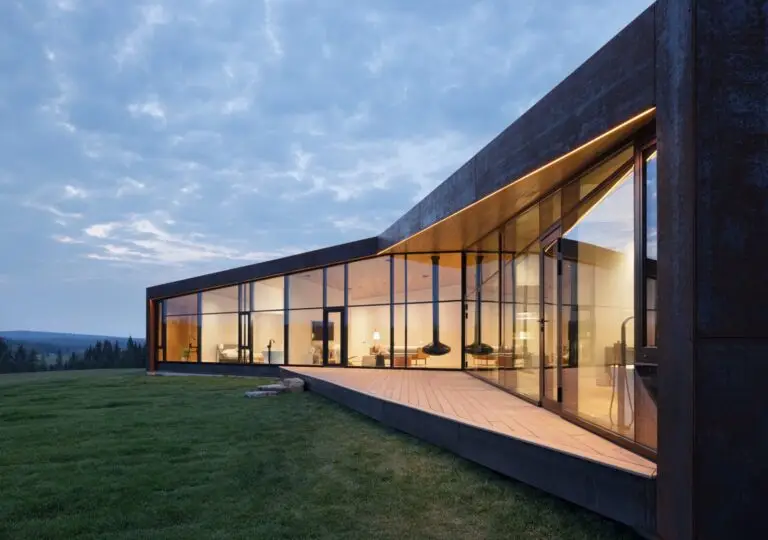

Applicable Uses
- Residential/Commercial
- Office buildings/Hospitals
- Schools/Halls of Residence

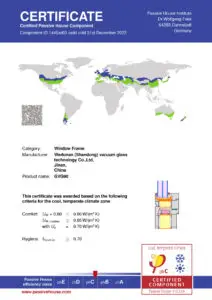

- Passive House certified buildings
- Nearly ZERO ENERGY consumption buildings
If you want to download this information as a PDF, please complete and download the GVG 90 Specifications.
