GVG 80
Product Description
Our GVG 80 range is an advanced thermal efficient window and door system with super-insulated frames, RC 2 security, advanced sound proofing and designed integrating a four-gasket airtight seal. The system comes with multiple opening options, including tilt and turn opening in and side hung only opening out. the GVG 80 system is the perfect choice for high end designs, large scale commercial projects and public builds such as hospitals.
Available in a selection of colours and wood styles.
Product Parameters
Aluminum Profile Thickness：1.8mm
Frame Width：80mm
Sash & Window Width：87mm
Visible Frame Width：36mm
Thermal Break Width：35.3mm
Glass：24-39mm

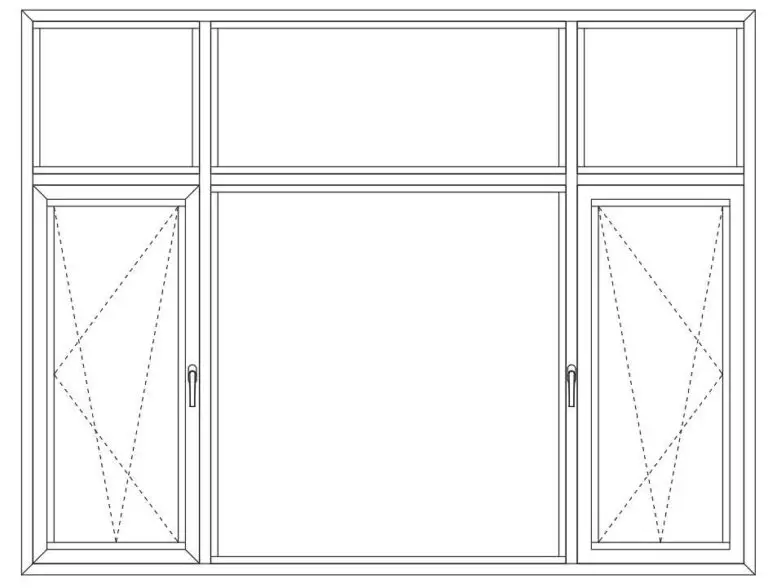

Opening Method：Casement, Awning, Tilt & Turn
Product Features
Isobaric sealing structure design
Euro-slot profile design
External profile water blocking and internal
staircase drainage system
- Uw ≥ 0.8 W/㎡K
- Uw ≤ 1.1 W/㎡K
Perfomance Parameters
Thermal Insulation：Level 9-10
Air Tightness：0.5≥q1＞0.5 (Level8)
Sound Insulation：39≤Rw+Ctr＜40 (Level 4)
Water Tightness：△P≥700 (Level 4)
Wind Resistance：P3≥5.0 (Level 9)
Applicable Uses
- Residential/Commercial
- Office buildings/Hospitals
- Schools/Halls of Residence
If you want to download this information as a PDF, please complete and download the GVG 80 Specifications.
